Classic 4 Loop Roller Coaster

Four Inversions and the Thrill Sequence

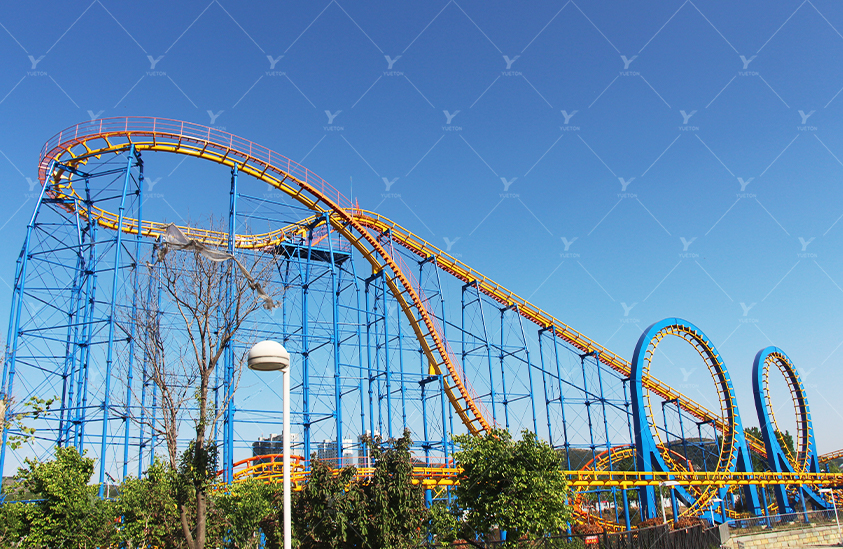

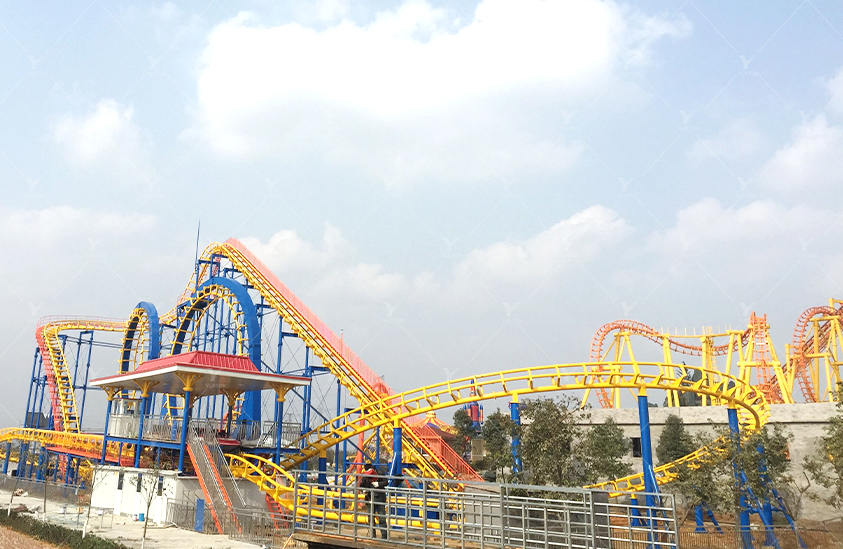

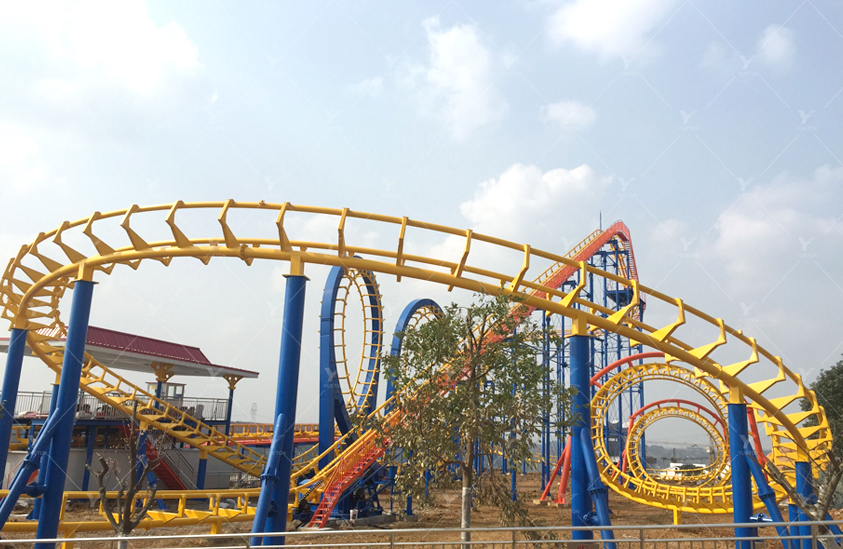

The Classic 4-loop Roller Coaster 5RC-09 is built around one idea: keep the train upside down as often as the profile allows. Four full inversions are stacked into a single circuit, so the middle of the ride never really settles before the next rotation arrives. Operators who buy this model are usually making a statement about what kind of park they run, and the ride earns its place as the one guests point at from the car park.

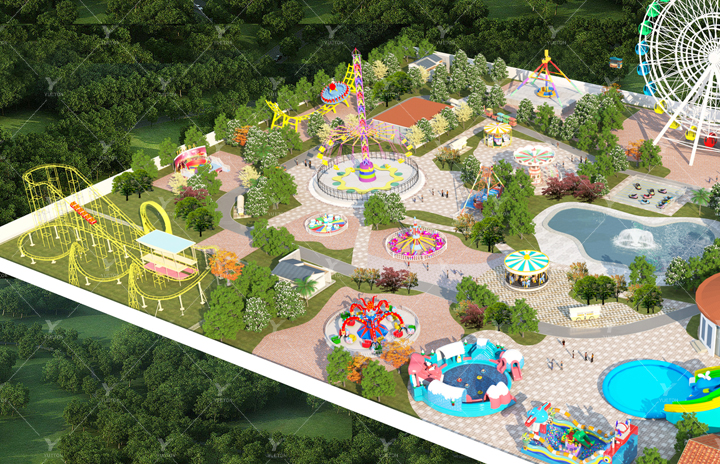

The track covers a footprint of about 90 by 40 m, which is a serious piece of ground. Plan it early in the master layout rather than fitting it around existing paths.

Track Footprint and Foundation Loads

Inversions create load cases that a flat circuit never sees. Each loop pulls the structure in changing directions, and the foundations have to hold those forces without movement over years of operation. Our structural drawings specify the pad sizes, the reinforcement and the concrete grade, and they should be handed to your civil contractor before any excavation starts.

Where ground is soft or made up, tell us at quotation stage. It is far cheaper to over-specify a foundation before pouring than to underpin a column afterwards.

Braking Systems on Multi-Inversion Coasters

Brakes sit at the end of the circuit and at any point where the train needs to be held. The run-out brake brings the train to a controlled stop in the station, while a trim brake earlier in the layout can be used to keep pacing consistent across the day. Each brake is checked before opening and after any interruption in service.

An anti-rollback device on the lift is a separate system, and it is inspected on its own schedule. Parks that already run a three-loop coaster will recognise most of this routine, though four inversions mean more brake positions to walk each morning.

Commissioning and Staff Training

Commissioning starts with a slow manual run of the train, then progressive speed tests before guests are allowed anywhere near the platform. Our engineers train your operators on the control panel, the dispatch sequence and the fault list, and they stay for the first guest-running days. Training is written up so new staff can be brought in later without repeating the whole process.

Wear Parts and Long-Term Servicing

On an inversion coaster the parts that work hardest are the wheels, the restraint latches and the brake fins. We supply a spare parts list with the ride and recommend a first-year kit covering the items most likely to need replacement. Reordering later is straightforward, since every part is tied to the model number. Deeper structural inspection is best scheduled in the closed season, when the ride can be down for a few days without upsetting guests.

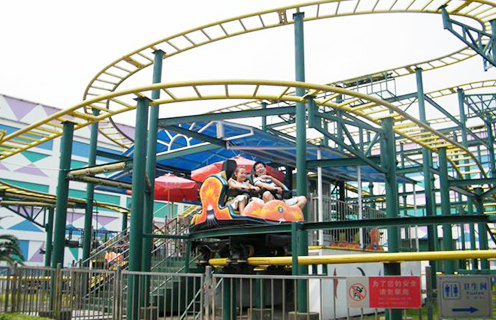

If your site cannot support a structure of this size, a smaller spinning coaster delivers strong ride appeal on roughly half the ground, and it can sit beside a flat ride such as a drop tower without competing for the same queue.
