Pirate ship

      Pirate Ship Rides: Five Models from 12 to 40 Seats

      This range covers five swing-type pirate ships. The two 12-seat versions are built for indoor family venues and small parks; the 24, 32 and 40-seat versions are outdoor rides with taller swing arcs. Every model uses an FRP-and-steel structure and is supplied with a CE certificate.

      Specifications

      ModelModel No.CapacityHeightPowerCover area
      Mini Pirate ShipYTCN-5PS-0512P3.5 m4.5 kW7 × 4 m

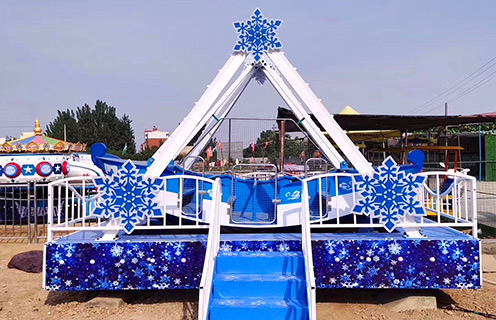

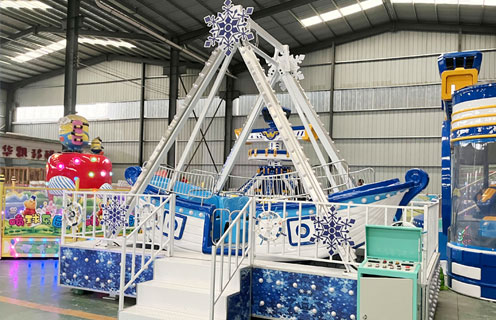

      Mini Snow Pirate ShipYTCN-5PS-0112P3.5 m4.5 kW4 × 7 m
      Pirate ShipYTCN-5PS-0624P7.2 m11 kW—
      32P Pirate ShipYTCN-5PS-0332P11 m30 kW25 × 9 m
      40P Pirate ShipYTCN-5PS-0440P14 m44 kW26 × 11 m

      All five run on 380 V. Structure is FRP with a steel frame. Colour, cabin graphics and logo are made to order; logo is laser printed.

      Choosing a Size

      The 12-seat models need a footprint of about 28 m² and fit under a low indoor ceiling — the mini snow version is often used in malls and family entertainment centres. The 24-seat model is the smallest outdoor option at 7.2 m tall. From 32 seats upward the ride needs a 225 m² or larger dedicated area and a 30–44 kW supply, which usually means a park with its own transformer.

      What Comes with the Ride

      Each unit ships in export packing with installation drawings and video. If you prefer, our staff can travel to site for installation. Spare parts and the electrical schematic are supplied with the ride.
