Swing rides

      Swing Rides and Flying Chairs: 12 to 36 Seats

      Thirteen models built on the same principle — chairs suspended from a rotating arm that lifts them outward. Capacity runs from 12 to 36 seats, and power from 2.2 kW to 18.8 kW. There are two distinct types, and they behave differently in operation.

      The Two Types

      Shaking head — the arm tilts as it rotates, so the chairs rise and fall through the cycle. Higher power draw and taller structures. The 32-seat and 36-seat models are in this group at 14.5–18.8 kW, and they are the ones built for parks with the space and the supply to run them.

      Self-control / static — the arm rotates at a fixed angle; the passenger does not control height. Lower power (2.2–4.5 kW) and shorter structures, which is why these are the common choice for malls, rooftops and family venues.

      Model Range

      ModelModel No.CapacityHeightPower
      Adjustable Swing RideYTCN-5FC-1312P4.5 m2.2 kW
      Portable Flying ChairYTCN-5FC-0312P—2.2 kW

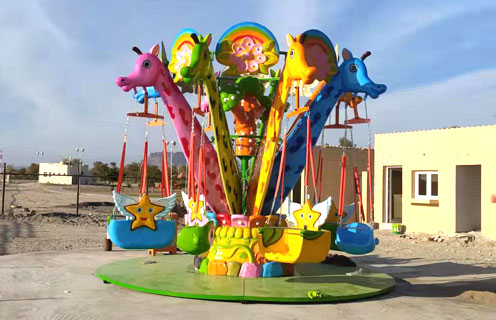

      Giraffe Flying ChairYTCN-5FC-01112P—2.2 kW
      Reinforced Flying ChairYTCN-5FC-01012P—3 kW
      Candy Flying ChairYTCN-5FC-0412P—3.5 kW

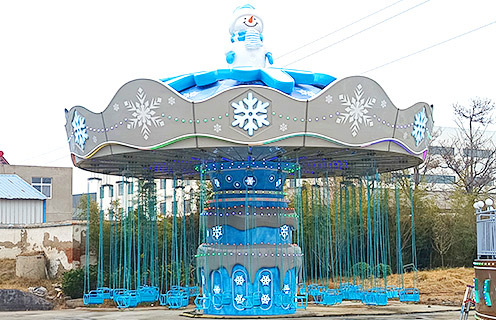

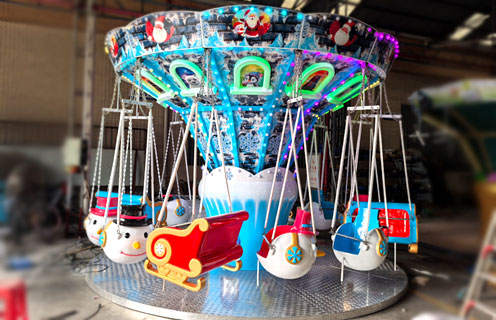

      Christmas Flying ChairYTCN-5FC-01212P—4.5 kW
      Watermelon Swing ChairYTCN-5FC-0116P—3.5 kW
      Dinosaur Flying ChairYTCN-5FC-0216P—3.5 kW
      High-Capacity Flying ChairYTCN-5FC-1424P5.8 m14 kW
      24 Seats Shaking Head Flying ChairYTCN-5FC-0924P—18 kW
      Shaking Head Flying ChairYTCN-5FC-0532P—14.5 kW
      36P Shaking Head Flying ChairYTCN-5FC-0736P—16 kW
      Energetic Flying ChairYTCN-5FC-0636P—18.8 kW

      Choosing Between Them

      The 12-seat models are the entry point: 2.2–4.5 kW, short structure, low operating cost. From 24 seats the power draw jumps to 14 kW and above, which changes both the electrical installation and the running cost per hour. If the site has a 380 V three-phase supply and space for a shaking-head cycle, the 32 and 36-seat versions give roughly three times the throughput of a 12-seat ride.

      Themed versions — candy, Christmas, dinosaur, giraffe, watermelon — use the same mechanical base as the standard model, so the theme is a cabin and colour choice rather than a different machine.

      Related

      Carousels · Ferris wheels · Pirate ships · Family rides · Flying chair videos

      Questions buyers ask about swing rides

      How many seats does a swing ride have?

      Twelve on six of the thirteen models, with 16, 24, 32 and 36 seat versions above them. Capacity is the main step between models.

      What power do they draw?

      From 2.2 kW on a 12-seat unit to 18.8 kW on a 36-seat shaking-head chair, with 3.5 kW the common figure.

      What clearance is needed?

      Heights of 4.5 m to 5.8 m are quoted, so the space above the sweep of the chairs matters, not just the footprint.

      How heavy is a unit for shipping?

      Between 1,500 kg and 8,000 kg. The 36-seat versions are the heavy end at 8,000 kg.
