Double Deck Seats Carousel

Designing a Two-Level Carousel as a Park Landmark

A double-deck carousel is not simply a larger version of a single-deck ride. It is a piece of architecture, and it rewards being planned as one. At 15 metres across and 11 metres tall, the 5C-18 becomes the thing visitors photograph, the shape printed on your park map, and the marker families use to agree on a meeting point.

That status has commercial value beyond the ticket line. A landmark ride pulls footfall past the outlets and stalls around it, and it gives your park a silhouette that reads from the far end of the car park.

Understanding the Structure Behind a 68-Seat Ride

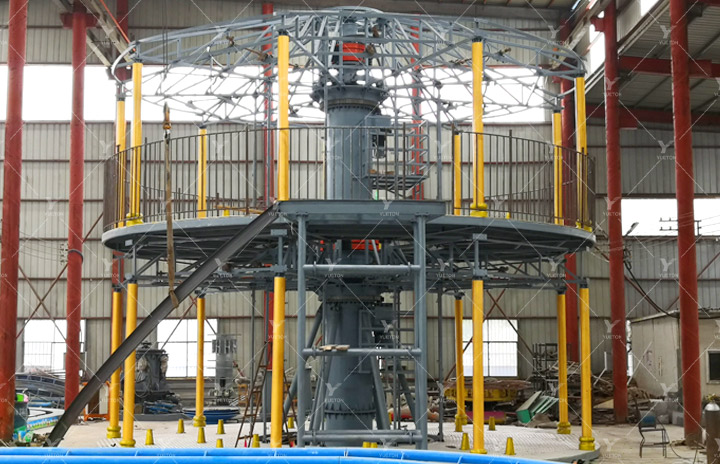

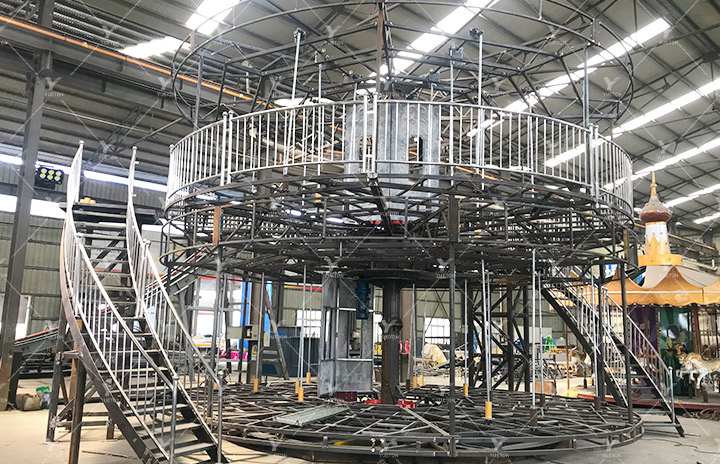

Sixty-eight riders per cycle sit on a structure weighing around ten tonnes. Keeping that mass turning smoothly is the central engineering task, and the answer lies in a heavy-duty upper-drive system matched to an 18kW motor.

Riders on the upper deck get a view no single-deck carousel can offer, and the two levels turn the ride into a destination in itself. Both decks carry independent restraints, and the control system includes emergency stop and interlock functions under CE certification.

Managing Guest Flow Across Two Decks

Two decks create two boarding patterns, and loading is where a large carousel succeeds or stalls on a busy day. A dedicated entry path and a carefully designed platform keep upper-deck access orderly for guests of all ages, so filling the seats does not drag out the cycle.

Where a twenty-four seat carousel empties its queue quickly on a single level, a two-level ride spreads that pressure across two platforms and two lines, which keeps a crowd moving even at peak hours.

Lighting a Double-Deck Carousel for Evening Crowds

After dark the ride has to hold attention as firmly as it does at midday. Two kilowatts of lighting run through the carousel's profile, tracing both decks and the canopy so the two-level shape glows from a distance.

Theme, colour and branding can all be tailored. Operators often treat a double-deck ride as a seasonal display, re-skinning it for holidays while keeping the same mechanical package underneath. If capacity plans grow further, a high-capacity carousel in the same range follows a similar drive philosophy.

Preparing a Site for an Eleven-Metre Carousel

A ten-tonne ride turning at 1.5 m/s needs ground that will not shift. Add the safety fence and the footprint covers roughly 16 metres, so the site plan should leave clearance on every side for guests and for maintenance access.

Power comes from a 380V three-phase supply. Foundation and electrical drawings are shared before shipping, so civil works can begin while the ride is still in production and the two timelines overlap instead of queueing.

Technical Specifications
