F1 Flying Car

Cycles per Hour: Eight-Seat Turnover on a Three-Metre Racing Ride

Eight seats per cycle is the number that sets everything else. Add load and unload time, a short safety check and the ride itself, and a well-run 5FR-05 turns over roughly ten to twelve cycles an hour at a steady pace - around 80 to 96 rides from a single unit. That is the figure to use when you model payback.

The queue lane should hold one full cycle plus a margin. Racing-themed rides attract groups of friends who all want to ride together, so the lane needs to absorb a pod of eight arriving at once, not a trickle of single riders. Wide gates and a clear step-in point keep each cycle close to its planned time.

Power and Phase Load: Running a 3.2kW Racing Ride on 220V or 380V

Power draw is 3.2kW at 220/380V, which is modest for a ride with real motion. On a 220V single-phase supply it fits most small venues without a transformer upgrade; on 380V three-phase it runs cooler and suits a site already wired for other rides. Confirm your supply before ordering, because it decides the drive configuration.

At 3.2kW, energy cost stays a small line in the operating budget - the meaningful costs are labour, ticketing and maintenance. Two or three attendants cover loading, height checks and the control panel comfortably. Venues that split duty between attractions often pair this with a 3P carousel ride in the younger zone, so the same team covers both.

Ground Area and Queue Layout for a Racing Ride: Six by Nine Metres

The covered area is 6 by 9 metres, with a height of 3m. That footprint fits a shopping centre atrium, a covered mall court or a mid-size amusement floor without eating the whole space. Leave the perimeter clear for a queue rail on one long side and a service approach on the other.

Prepare level, drained ground and a foundation per the drawings, then keep the loading gate on the side facing your foot traffic. A ride that loads from behind a corner wastes attendants. Family entertainment centres with more than one track-based attraction commonly add a fire brigade track train ride nearby, since both load quickly and share a ticketing point.

Repeat Rides and Zone Siting: Racing Themes That Pull a Second Turn

Racing appeals to a wide age band, and that is what makes repeat rides happen. A rider finishes and immediately wants a faster lap or a better seat, which is the cheapest revenue in the building. Price a single ride and a three-ride band, and put the band price where people queue rather than at the ticket desk alone.

Site the unit where the racing styling is visible from a distance. Bright race bodywork photographs well and pulls passing footfall on its own. Keep the F1 zone away from toddler areas, since the theme sets an expectation of speed that suits older children and teenagers better than very young riders.

Downtime Budget on a Racing Ride: Servicing FRP Bodywork and Steel Frames

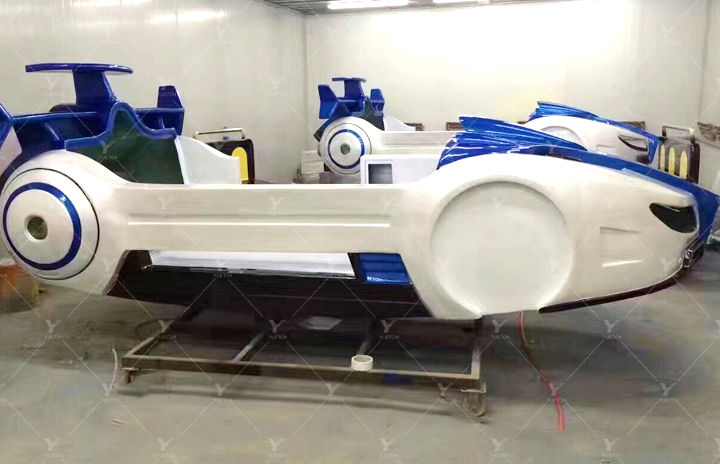

Bodywork is FRP over a steel frame, which keeps weight down and repairs simple. Plan a daily walk-round on the seats, restraints and motion arms, a monthly check of bolts and bearings, and a full inspection before each high season. Most operators lose more revenue to small faults than to major failures, so the walk-round matters most.

Keep a spare set of restraints and a touch-up kit for the customized colour on site; a scuffed race car stops looking like a race car within a few months in heavy use. Log every fault with the date - on a ride running a hundred cycles a day, the pattern in the logbook is what tells you a component is wearing out.
