Coffee Cup Rides

Seat Bands: 24P and 36P on the Classic Coffee Cup Format

The Coffee Cup Rides 5FR-09 comes in two passenger bands, 24P and 36P, and picking between them is a question about your queue rather than your budget. A 24P machine empties and refills in one wave, which suits a family zone where groups of four or five walk up together and expect to board straight away. The 36P version moves a heavier lunchtime and weekend crowd in the same number of staff hours, but it needs a longer platform edge and a queue that can hold a bigger group without spilling into the walkway. Both share the same 1500KG operating weight, so the structure underneath is not the deciding factor. What changes is how much standing room you give the entrance.

Hourly Capacity Planning for the Most Common Spinning Ride

Teacup rides earn their place because the loading pattern is dead simple: guests sit, the cup spins, the cycle ends, the next group walks on. That predictability is worth more than peak capacity when you are staffing a family area with one attendant. Because riders steer their own cup from the centre wheel, the experience varies between cups, which keeps children in their seats for a second and third turn. Plan your queue rail so the next group stands level with the platform edge rather than behind it — the time saved in the handover is what converts to riders per hour. A neighbouring space walk ride with the same cycle-and-reset rhythm can share that attendant during quiet hours.

Three-Kilowatt and Five-Kilowatt Drives on a Universal Cup Ride

Two drive ratings are available: 3KW and 5KW. The lower figure matches the 24P platform, the higher one matches 36P, and the difference is simply the mass of cups the motor has to keep turning. Both are low numbers for a ride of this seat count, and the reason is that the guests do most of the work — the drive turns the platform and the cups, while riders add speed by hand. For your electrician, that means a modest supply and an intermittent duty pattern, so the cable run and breaker sizing stay straightforward. The 1500KG weight is light enough to avoid deep foundation work on most sites.

Servicing a Classic Cup Ride That Runs All Day, Every Day

High turnover is the point of a teacup ride, and high turnover is also what wears one out. The centre wheel bearing in each cup takes the most abuse, followed by the restraint latches and the platform's rotation bearing. Put the centre wheels on a weekly check, with a spin test by hand for wobble or noise, and inspect the platform bearing monthly. FRP cup shells handle constant contact with bags and shoes, but look for cracks around the rim after a heavy season. CE certification covers the unit as shipped, and a written check log makes local inspection faster. Custom colours and a custom logo are made to order, so add spare branded shells to the same purchase.

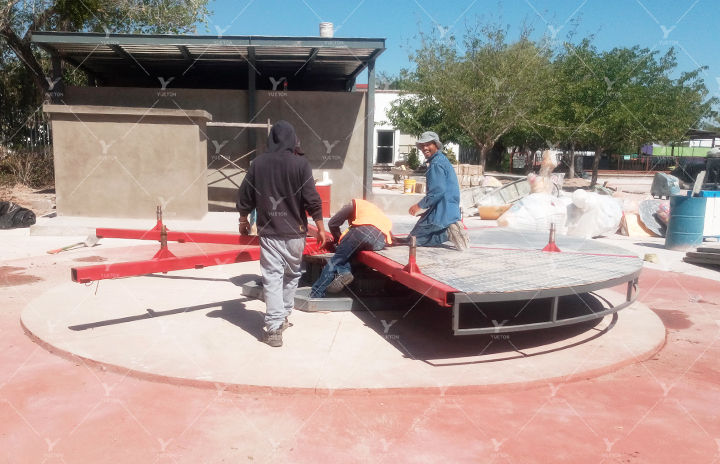

Site Fit and Floor Loading for the Spinning Format Buyers Know Best

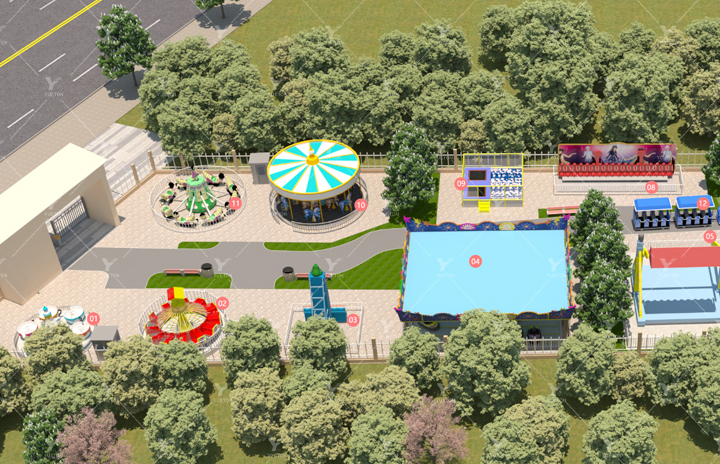

Almost every operator has ridden a teacup ride, which makes this the easiest attraction to sell internally and the easiest to staff. That familiarity cuts training time and reduces the questions guests ask at the gate. On site, the practical jobs are the same as any platform ride: level the base, allow clear access around the rim for maintenance, and shade the queue if the plot faces afternoon sun. Weight sits at 1500KG, so a prepared pad or a sound slab is normally enough. If you already run a kids driving car ride nearby, group the two so families stay in one part of the park and staff can cover both.

Technical Specifications
