Booster Ride

Height and Ride Envelope: Operating a Twenty-Four-Metre Thrill Structure

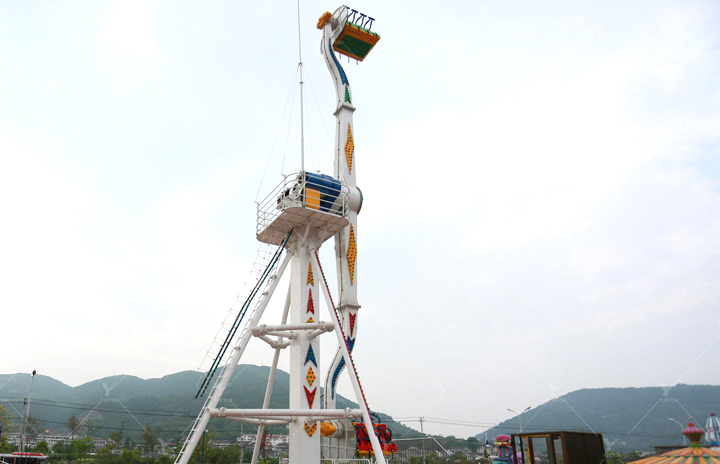

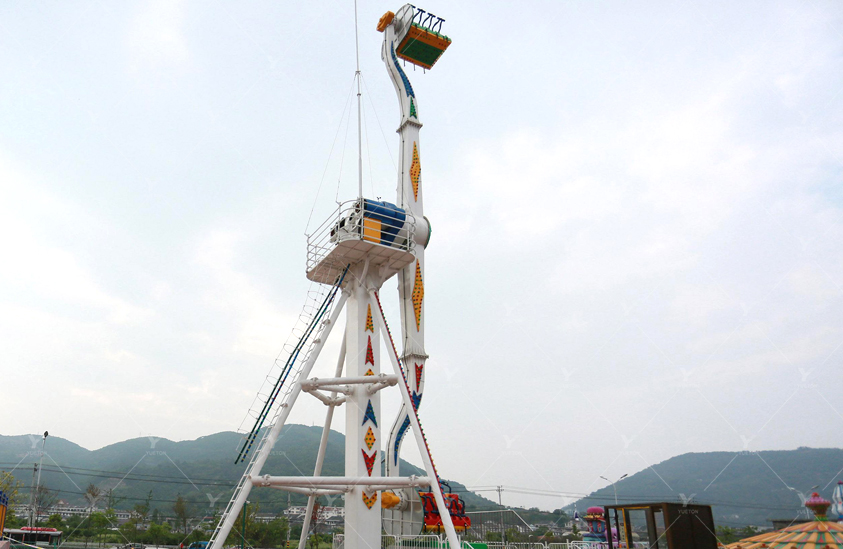

At 24m tall, the 5TR-27 is the structure guests see from the park gate. That height drives your site planning first: check the delivery approach, confirm nothing overhead blocks the lifts, and mark a ground-level exclusion zone.

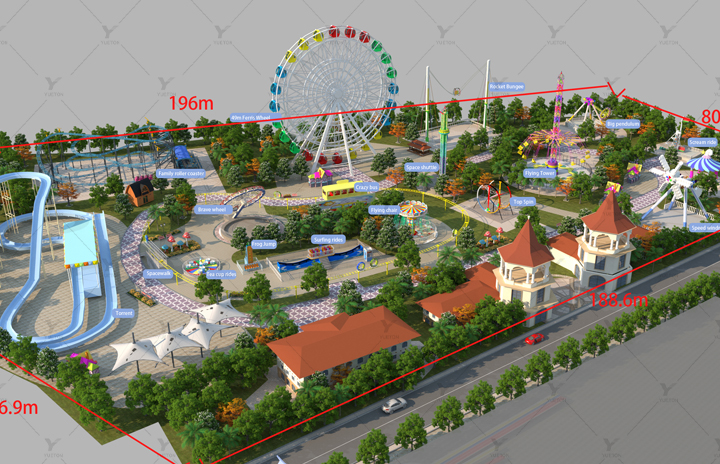

Sightlines matter as much as safety here. A 24m thrill machine works as a landmark, so orient it where arriving visitors see the rotation from the entrance path. Operators usually place gentler family rides well away from it - a jumping kangaroo in a younger zone keeps the noise and the crowd mix separated.

Power Load Planning at 74KW: Supply Sizing for a High-Intensity Spin

Power draw is 74KW, the largest number in this specification and the one that most affects site preparation. Have your electrical contractor confirm a supply sized for the drive, and the cable run from the nearest suitable point, before the order is placed.

Throughput is what pays for that draw. Twelve riders per cycle through an evening session spreads the energy cost across a healthy number of paid rides, so put the 74KW figure next to your ticket price before you buy.

Turnover at Twelve Seats: Cycle Counts on a High-Intensity Spin at Peak

Twelve seats per cycle, and this ride does not run short cycles. A high-intensity spin needs a full load, a restraint check on every seat and a clean unload. Realistically, count on eight to ten cycles an hour, around 96 to 120 rides, with the upper end only achieved when two attendants work the platform properly.

Evening and weekend peaks are when this ride earns its keep, and queue design decides whether that capacity is usable: a holding area for one full cycle, gates on the loading side only, and a separate exit path.

Intensity Screening: Admission Rules at a High-G Spin

This is the most intense ride on a typical site, and the queue line should say so before guests commit. Post the admission criteria at the entrance: suitable for guests over three years old, with height, health and supervision rules applied at the gate.

Keep one attendant watching the queue as well as the machine; a rider who changes their mind is easiest to help before the restraints close. Where a site wants a second intense option, a dinosaur flying chair works well in an adjacent zone for a slightly younger thrill-seeking crowd.

Inspection Windows on a 24m Structure: Servicing a High-Load Machine

A machine that lifts riders to 24m and spins them carries more load than anything else on a family midway, so the routine should reflect it: daily pre-opening checks on restraints, seats and the lift, monthly bolt and bearing checks, and a full structural inspection before the season opens.

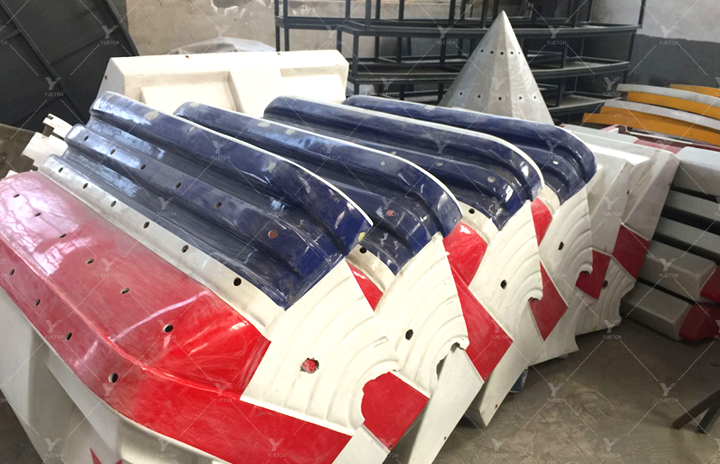

FRP and steel construction keeps the structure serviceable, but the moving parts set the calendar. Log every fault with a date and cycle count, and keep restraint spares on site; a part that fails twice in a month is telling you something, and the log shows it first.

Technical Specifications
